How Can Three Layer Coating Stay Consistent in Continuous Production?

Coating defects in high-volume manufacturing carry severe operational penalties. When a continuous production line experiences delamination, uneven film thickness, poor release properties, or sudden color shifts, the resulting scrap rates destroy margins. Managing these variables requires absolute precision. You must control three distinct application phases—primer, mid-coat, and top-coat—without interrupting line speed, compromising structural stability, or losing batch-to-batch uniformity.

Achieving this level of consistency demands a systematic framework for controlling fluid dynamics, application parameters, and multi-zone curing environments. By engineering the spray booth and oven profiles to match the specific rheology of the coating, manufacturers can maintain exact wet film thicknesses and prevent moisture entrapment. This guide breaks down the mechanical, environmental, and chemical controls necessary to deploy a reliable, defect-free system at scale.

Key Takeaways

• Precision in Application: Automated atomization and fluid delivery controls are mandatory to maintain exact wet film thickness and proper leveling across all three layers.

• Environmental Stability: Fluctuations in ambient temperature and humidity drastically alter the rheology of a three layer water based PTFE coating, requiring strict climate control.

• Substrate Preparation: Consistent adhesion begins with standardized mechanical or chemical profiling, particularly when applying a three layer coating for stainless steel cookware.

• Zoned Thermal Management: Utilizing stepped curing profiles prevents solvent entrapment and ensures the structural integrity of the multi-layer build.

• Real-Time QA: Implementing inline measurement tools prevents cascading defects, color variations, and minimizes costly rework or scrap.

The Architecture of a Three Layer Non Stick Coating System

Defining the Success Criteria for Each Layer

A multi-layer system functions as a single composite structure where each layer performs a highly specialized mechanical or chemical role. The primer establishes the foundation. It utilizes binder resins like polyamide-imide (PAI) or polyethersulfone (PES) to create a mechanical and chemical bond with the bare metal substrate. The primer also provides essential corrosion resistance, preventing oxidation from undercutting the film during the product's lifecycle. A standard primer application targets a dry film thickness (DFT) of 10 to 15 microns.

The mid-coat acts as the structural backbone of the entire stack. It contains reinforcing agents, such as ceramic particles, silicon carbide, or mica flakes, to resist scratching and abrasion while building overall film thickness. The mid-coat bridges the adhesion gap between the binder-rich primer and the fluoropolymer-rich top-coat. Finally, the top-coat delivers the ultimate release properties. It contains the highest concentration of pure polytetrafluoroethylene (PTFE). Failure in any single layer compromises the entire stack. If the mid-coat lacks structural integrity, the system sags during the wet-on-wet application phase. Poor primer adhesion leads to catastrophic delamination after thermal cycling.

Water-Based vs. Solvent-Based Dynamics

Modern production lines increasingly rely on aqueous formulations to meet strict environmental emissions regulations. However, a three layer water based PTFE coating behaves very differently than legacy solvent-based systems during continuous application. Water possesses a high latent heat of vaporization (approximately 2260 kJ/kg). It requires significantly more thermal energy and highly specific environmental conditions to evaporate efficiently compared to solvents like xylene or N-Methyl-2-pyrrolidone (NMP).

During a continuous run, water-based systems present elevated risks of moisture entrapment. If the water does not evaporate completely before the coating cross-links in the high-heat oven zones, the trapped vapor expands rapidly. This expansion causes blisters, pinholes, or a complete loss of inter-coat adhesion. Flash-off requirements for aqueous systems demand strict control over ambient humidity and air velocity in the flash-off zone. Solvent-based systems flash off faster and tolerate ambient humidity swings better, but they require explosion-proof equipment and heavy exhaust scrubbing infrastructure.

Core Variables Threatening Batch-to-Batch Consistency

Substrate Variations and Surface Tension

Consistent adhesion relies entirely on surface preparation. Minor changes in substrate roughness or cleanliness drastically alter the primer's mechanical bond. If a metal blank carries residual stamping oils or drawing compounds, the primer fails to wet out the surface, causing fish-eyes or craters. Variations in the grit-blasting process change the surface profile depth (measured as Ra), which directly impacts how the primer levels and anchors.

Metallurgical differences introduce complex variables. When applying a three layer coating for stainless steel cookware, manufacturers face specific thermal and mechanical challenges. Stainless steel retains heat longer and expands at a different rate than aluminum. The primer formulation must accommodate these thermal expansion rates without fracturing during rapid heating or cooling cycles. Furthermore, stainless steel requires highly aggressive mechanical profiling—often using coarse aluminum oxide grit—to achieve the necessary surface roughness for mechanical interlocking, as chemical etching is less effective on stainless alloys.

1. Degrease the substrate using an alkaline wash at 140°F to remove all stamping oils.

2. Rinse with deionized water to remove alkaline residues that could interfere with primer adhesion.

3. Grit blast the surface using 60-80 mesh aluminum oxide to achieve an Ra profile of 2.5 to 3.5 microns.

4. Blow off residual dust using clean, dry, oil-free compressed air immediately before the primer station.

Fluid Viscosity and Agitation Shifts

Fluid viscosity rarely remains static over an eight-hour production shift. Shear stress from pumping systems physically alters the coating material. Diaphragm pumps, fluid regulators, and tight-radius hoses exert mechanical shear that breaks down rheology modifiers in the formulation. This causes the viscosity to drop over time. When viscosity drops, the wet film becomes prone to sagging on vertical surfaces, leading to thick edges and thin centers on the coated parts.

PTFE particle settling presents another major risk. Fluoropolymer dispersions are heavy and naturally want to separate from the carrier fluid. If agitation in the delivery tanks is too slow, the PTFE particles settle to the bottom. The spray guns then apply a resin-rich, PTFE-poor layer, severely degrading the non-stick performance. Conversely, if agitation is too aggressive, it introduces air bubbles or induces shear-thickening, which clogs fluid lines and disrupts the atomization pattern at the gun tip.

Pigment Dispersion and Aesthetic Uniformity

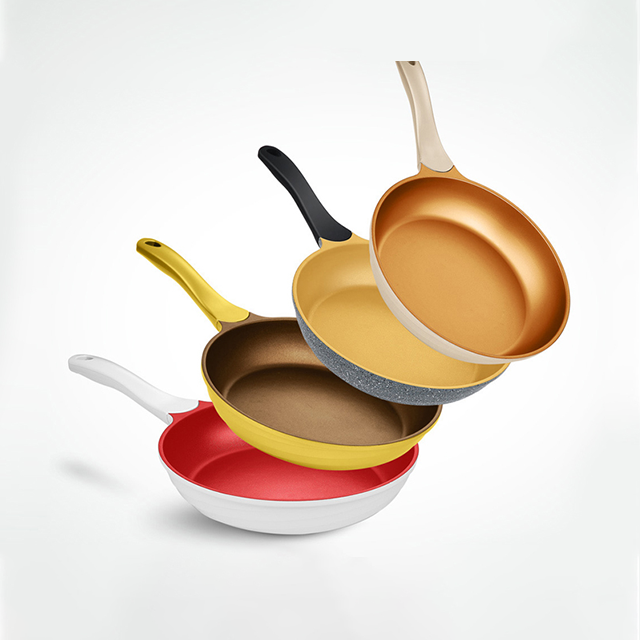

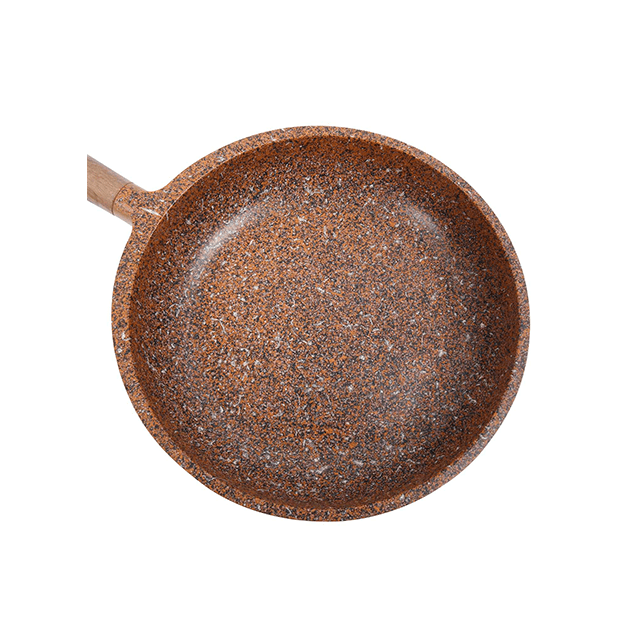

Maintaining batch-to-batch color consistency is notoriously difficult in continuous runs. Consumer-facing products demand exact aesthetic uniformity. The mid-coat often carries the primary pigment load and metallic flakes used for visual appeal. If these components are not dispersed evenly in the fluid delivery system, the final product shows visual defects.

Improper agitation leads to color banding or mottling across different production runs. Metallic flakes align improperly if the fluid delivery pressure fluctuates or if the wet film thickness varies. Flake orientation dictates how light reflects off the surface. A heavier wet film allows flakes to lay flat, creating a bright, uniform appearance. A dry spray causes the flakes to stand on edge, resulting in a dark, mismatched appearance even if operators use the exact same batch of liquid coating.

Flash-Off and Curing Temperature Fluctuations

Oven stability dictates the final film density and physical properties. Uneven oven temperatures prevent proper cross-linking of the binder resins. If the left side of the conveyor runs five degrees cooler than the right side, the coating cures unevenly, leading to localized adhesion failures or soft spots that fail abrasion testing.

Compressing flash-off times to accommodate faster line speeds introduces severe defects. If the wet film enters the high-heat zone too quickly, the surface skins over while water remains trapped underneath. This leads to "mud-cracking" or solvent popping. The surface literally fractures as the trapped vapors force their way through the semi-cured film, destroying the barrier properties and ruining the aesthetic finish.

Engineering the Continuous Production Line for Stability

Automated Spray Application and Atomization Control

Manual spraying cannot achieve the micron-level precision required for multi-layer systems. Automated atomization is mandatory. Manufacturers typically choose between High Volume Low Pressure (HVLP) guns and rotary bell atomizers. HVLP provides excellent directional control for complex geometries, while rotary bells offer superior transfer efficiency for flat or shallow-draw parts.

Calibrating fluid flow, atomizing air pressure, and fan pattern ensures a consistent wet film thickness. You must adjust these parameters independently for the primer, mid-coat, and top-coat to match their specific viscosities and solid contents. For example, a high-viscosity mid-coat may require 50 PSI of fluid pressure and 25 PSI of atomizing air, while a low-viscosity top-coat requires only 30 PSI of fluid pressure to prevent over-atomization and dry spray.

Wet-on-Wet Application Strategies

Applying three layers continuously usually involves a wet-on-wet process. The mid-coat is sprayed over a wet or semi-flashed primer, and the top-coat is applied immediately after. This requires precise rheological control to prevent structural collapse or "leaning" of the wet film on vertical walls.

The formulations must be engineered to prevent inter-coat mixing. The primer must build enough surface tension to support the mid-coat without dissolving into it. You achieve this by controlling the flash-off time between spray stations. A brief ambient flash of 30 to 60 seconds allows the primer to set just enough to hold the subsequent layers while remaining wet enough to promote chemical cross-linking during the final bake.

Climate and Environment Controls

The spray booth environment directly controls the coating's behavior. You must maintain strict temperature and humidity parameters. For aqueous systems, ambient humidity dictates the evaporation rate. If the humidity is too high, the water will not evaporate during the designated flash-off period. If the humidity is too low, the coating dries too quickly on the edges, causing a rough, dry spray appearance.

Standardizing the booth temperature at 72°F (22°C) with a relative humidity of 50% to 60% stabilizes the flash-off rate. Air downdraft velocity must also be monitored. A downdraft of 100 to 120 feet per minute (FPM) ensures overspray is removed efficiently without causing excessive turbulence that disrupts the spray gun fan patterns.

Zoned Curing Profiles for Multi-Layer Builds

A single high-heat blast destroys a multi-layer build. You must utilize a stepped baking process with distinct temperature zones. This ensures even curing from the primer up to the top-coat, allowing volatiles to escape before the surface seals.

• Zone 1 (Flash-Off): Operates between 180°F and 212°F (80°C - 100°C). This zone gently evaporates water and fast-evaporating solvents without skinning the surface.

• Zone 2 (Intermediate Bake): Operates between 400°F and 480°F (200°C - 250°C). This initiates the cross-linking of the binder resins in the primer and mid-coat.

• Zone 3 (Peak Metal Temperature): Operates between 750°F and 800°F (400°C - 425°C). This zone melts and sinters the PTFE particles, fusing the layers into a continuous, non-stick film.

Extending the lower-temperature dwell times before reaching Peak Metal Temperature (PMT) prevents moisture entrapment in water-based systems. Operators must run data loggers (like a Datapaq system) through the oven weekly to verify the actual metal temperature matches the oven setpoints.

Evaluating Coating Formulations for Scalability

Rheology, Leveling, and Sag Resistance

A formulation must balance the ability to self-level with the ability to hold on vertical surfaces. This balance is defined by its rheology. A thixotropic coating decreases in viscosity under shear (during spraying) allowing it to atomize finely. Once it hits the substrate, the shear is removed, and the viscosity must recover quickly to prevent sagging or pooling.

Evaluating this requires testing the coating on the exact geometries of your production parts. A formulation that levels perfectly on a flat test panel may pool in the corners of a deep-draw pan before entering the curing oven. Formulators adjust the thixotropic index using specific additives to ensure the wet film stays exactly where it is applied.

Solid Content Ratios and Film Build Predictability

Volume solids determine how much of the wet film remains after curing. Understanding the relationship between volume solids and final dry film thickness (DFT) is essential for predicting material consumption and setting application parameters.

If a coating has 40% volume solids, a 50-micron wet film yields a 20-micron dry film. High-solid formulations require less wet film to achieve the target DFT, reducing the amount of water that must be evaporated. This improves line speed efficiency and reduces the risk of solvent popping. Operators must measure wet film thickness constantly to ensure the dry film will fall within the specified tolerance.

Regulatory Compliance and Safety Standards

Scalability also means market access. Formulations used in food-contact applications must meet strict global standards. Verifying FDA compliance under 21 CFR 175.300 in the United States, RoHS directives, and REACH regulations in Europe is non-negotiable for consumer goods.

You must ensure that the chosen formulation is free of restricted per- and polyfluoroalkyl substances (PFAS) like PFOA and PFOS. Securing technical data sheets (TDS) and regulatory declarations from the supplier guarantees that the final product can be sold legally in your target markets without risk of recall or compliance fines.

Cost vs. Performance Trade-Offs in High-Volume Runs

Line Speed vs. Cure Time Constraints

Production managers constantly balance the desire for maximum throughput against the physical limits of thermal curing. Accelerating the conveyor belt from 20 feet per minute to 30 feet per minute increases units per hour but drastically reduces the time parts spend in the oven.

If the line speed exceeds the oven's capacity to transfer heat, the parts will not reach the required PMT. This results in under-cured coatings that fail cross-hatch adhesion tests. The hidden costs of accelerating line speeds include exponentially higher defect rates, compromised inter-coat adhesion, and increased energy consumption as operators attempt to force rapid heating by cranking up oven temperatures beyond optimal setpoints.

Yield Rates and Defect Tolerance

Cheaper, volatile coatings often look attractive on a spreadsheet but destroy efficiency on the production floor. Investing in premium, highly stable formulations reduces scrap rates and rework, driving up the overall first-pass yield.

A stable formulation tolerates minor fluctuations in line speed, fluid pressure, or booth temperature without failing. The cost of a 5% increase in scrap rate due to a cheap, unstable mid-coat far outweighs the savings on the liquid material. High-volume runs demand formulations engineered for wide application windows and robust defect tolerance.

Implementation Risks and Mitigation Strategies

Managing Cross-Contamination in Delivery Systems

Cross-contamination between the primer, mid-coat, and top-coat lines ruins a production run. If primer resin enters the top-coat fluid line, it destroys the release properties and causes severe aesthetic defects like seeding or grit.

Mitigation requires strict physical separation. You must install dedicated fluid lines, pumps, and regulators for each layer. Implement automated flush cycles using the manufacturer-recommended cleaning agents. Establish rigid maintenance schedules to inspect fluid lines for buildup, replacing hoses periodically before internal degradation contaminates the fluid path.

Real-Time Quality Assurance and Monitoring

Relying solely on end-of-line inspections guarantees that defects will be produced in large batches before they are caught. You must implement inline QA technologies to catch deviations early in the process.

1. Deploy ultrasonic or laser wet-film thickness gauges immediately after the spray stations to verify leveling before the product enters the oven.

2. Conduct standardized destructive testing on batch samples every hour, including cross-hatch adhesion (ASTM D3359) and standard abrasion tests.

3. Use spectrophotometers to perform colorimetry checks (measuring Delta E) on the mid-coat to catch pigment dispersion issues before they shift out of tolerance.

4. Monitor fluid viscosity at the tank every two hours using a Zahn cup to ensure shear stress has not degraded the material.

Conclusion

Achieving consistency in a Three Layer Non Stick Coating is not achieved by the formulation alone. It demands rigorous control over application mechanics, fluid leveling, and zoned environmental variables. The interaction between the spray equipment, the ambient booth conditions, and the oven profile dictates the final quality of the multi-layer build.

When shortlisting coating suppliers, evaluate them based on their technical support capabilities, formulation stability under shear, batch-to-batch color matching, and compatibility with your existing line speeds. A supplier must act as an engineering partner, providing on-site troubleshooting and precise rheological adjustments.

Take the following steps to secure your continuous production line:

1. Conduct a comprehensive line audit using a data logger to map current temperature zones and air velocities in your curing ovens.

2. Verify the calibration and wear status of your atomization equipment, replacing worn fluid nozzles and air caps immediately.

3. Request technical data sheets for high-stability water-based PTFE options to compare volume solids and required flash-off times against your current line speed.

4. Implement automated wet-film thickness monitoring immediately after the top-coat application station to catch sagging or dry spray in real time.

FAQ

Q: What causes delamination in a three layer non stick coating?

A: Delamination is primarily caused by poor substrate preparation, such as inadequate grit blasting or residual stamping oils. It also results from improper flash-off times between layers or under-curing of the primer, which prevents cross-linking and compromises the structural stability of the entire build.

Q: How do you measure wet film thickness in continuous production?

A: Manufacturers use automated inline sensors, such as ultrasonic or laser gauges, to continuously monitor thickness without stopping the line. Manual wet film combs are also used for periodic, spot-check verification by operators at designated quality control stations before the parts enter the oven.

Q: Why transition to a three layer water based PTFE coating?

A: Transitioning reduces VOC emissions, ensures compliance with stricter environmental regulations, and improves workplace safety profiles. While aqueous systems require tighter climate control and zoned curing, they eliminate the fire hazards and heavy disposal costs associated with bulk solvent use.

Q: What is the ideal curing temperature for a three layer coating for stainless steel cookware?

A: Final cure temperatures typically range between 400°C and 430°C, depending on the specific PTFE formulation and the mass of the substrate. A stepped heating approach is mandatory to safely reach the peak metal temperature (PMT) without trapping moisture or fracturing the primer.

Q: How does line speed affect the final non-stick properties?

A: If line speed exceeds the oven's capacity to achieve the required PMT, or if it rushes the flash-off phase, the PTFE particles will not properly sinter. Solvents or water become trapped, leading to poor release properties, blistering, and premature coating failure.

Q: How can manufacturers ensure batch-to-batch color consistency in multi-layer coatings?

A: Consistency requires continuous, low-shear agitation in the delivery tanks to keep pigments and metallic flakes evenly dispersed. This must be paired with strict incoming quality control of the liquid coating batches and precise fluid delivery pressure to ensure uniform flake orientation.

Q: Can batch-to-batch consistency be fully automated?

A: While fluid delivery, atomization, and oven zoning can be highly automated, full consistency still requires active QA management. Continuous monitoring of ambient conditions, substrate quality, and aesthetic uniformity relies on trained personnel interpreting data from inline sensors and performing manual adhesion tests.
